Din Pn10 Welding Neck Flanges

$25.00 | 1 kg(Min.Order)

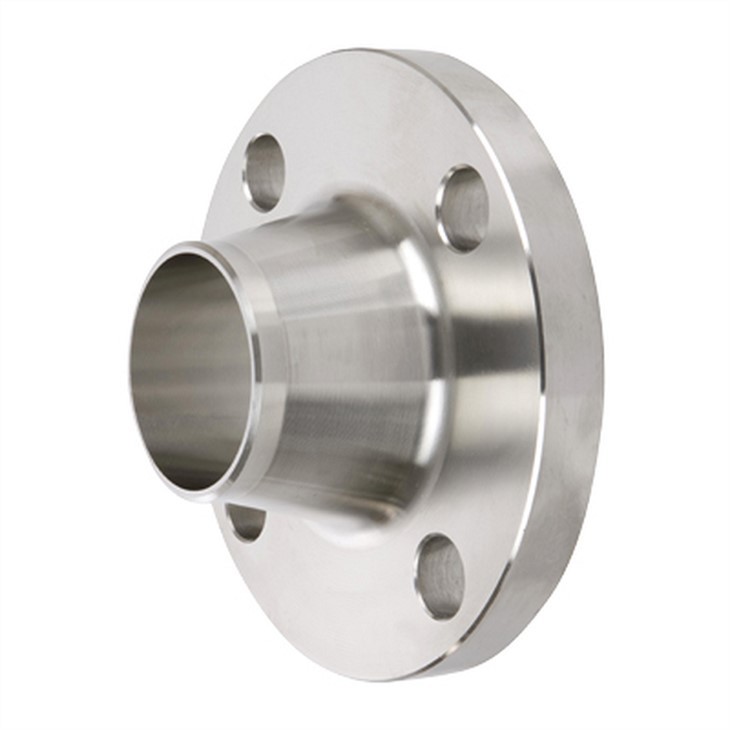

A weld neck flange (WN flange) means a flange has a neck for weld with the pipe, it is easily to recognized by their long tapered neck on the flange.

Send Inquiry

Add To Cart

Features

Introduction:

Din Pn10 Welding Neck Flanges are one of the most popular products in the market, and they are widely used in various industries such as oil and gas, power generation, chemical and petrochemical, and many more. As a reputed manufacturer in China, we offer high-quality Din Pn10 Welding Neck Flanges to our customers located in different parts of the world. In this product introduction, we will discuss the various features, benefits, and advantages of our products that make them stand out in the market.

Features:

The Din Pn10 Welding Neck Flanges manufactured by us are designed and developed keeping in mind the industrial standards and requirements of the customers. Some of the prominent features of our products are as follows:

1. High-Quality Materials: Our Din Pn10 Welding Neck Flanges are made from high-quality materials that ensure durability, strength, and long-lasting performance.

2. Precise Dimensions: The dimensions of our Din Pn10 Welding Neck Flanges are precise, which guarantees a tight and secure fit, thereby reducing the chances of leakage and damage.

3. Corrosion-Resistant: Our Din Pn10 Welding Neck Flanges are corrosion-resistant, which means that they can withstand harsh environments, such as high temperatures, chemicals, and corrosive substances.

4. Easy Installation: The design of our Din Pn10 Welding Neck Flanges is such that they are easy to install, which saves time and effort and reduces the overall cost of the project.

5. Cost-Effective: Our Din Pn10 Welding Neck Flanges are cost-effective, which means that they offer value for money to the customers.

Benefits:

The Din Pn10 Welding Neck Flanges offered by us have several benefits that make them the preferred choice of customers worldwide. Some of the significant benefits of our products are as follows:

1. Increased Safety: The precise dimensions and tight fit of our Din Pn10 Welding Neck Flanges ensure increased safety, as they reduce the chances of leakage and damage.

2. Enhanced Performance: The high-quality materials used in the manufacturing of our products ensure enhanced performance, which results in increased efficiency and productivity.

3. Long-Lasting: The corrosion-resistant properties of our Din Pn10 Welding Neck Flanges ensure that they last for a long time, thereby reducing the maintenance and replacement costs.

4. Reduced Downtime: The easy installation and secure fit of our Din Pn10 Welding Neck Flanges ensure that there is minimal downtime during maintenance and repair work.

5. Versatility: Our Din Pn10 Welding Neck Flanges are versatile and can be used in a wide range of applications, which makes them ideal for different industries.

Advantages:

Apart from the features and benefits of our products, there are several advantages of doing business with us. Some of them are as follows:

1. International Standards: Our Din Pn10 Welding Neck Flanges comply with international standards such as DIN, ASME, ANSI, etc., which ensures that they are of high quality and meet the requirements of customers worldwide.

2. Competitive Prices: We offer competitive prices for our Din Pn10 Welding Neck Flanges without compromising on the quality, which makes them an affordable option for customers.

3. Customization: We can customize our Din Pn10 Welding Neck Flanges based on the specific requirements of customers, which ensures that they get the products they need.

4. Timely Delivery: We ensure timely delivery of our products, which ensures that our customers receive them on time and can start their projects without any delay.

Conclusion:

In conclusion, our Din Pn10 Welding Neck Flanges are high-quality, versatile, and cost-effective products that offer several benefits and advantages to customers worldwide. As a reputed manufacturer in China, we ensure that our products meet the international standards and requirements of customers. We offer competitive prices, customization options, and timely delivery, which make us the preferred choice of customers worldwide.

1. Introduction: A weld neck flange (WN flange) means a flange has a neck for weld with the pipe, it is easily to recognized by their long tapered neck on the flange.

2. Description：The weld neck flange is connected with the pipe from the neck in butt welding method, that means the neck should be have same material and same outer diameter and wall thickness with the pipe. The butt welding joint could provide a strong connection between the pipes and flanges which is better for high pressure application.

With a neck on one side of the flange, the other side of the flange is sealing face, which are between the two flanges joint. WN flange usually supplied with flat face (FF), raised face(RF) and ring type joint (RTJ). The raised face has a height on the flange rather than the flat face, the RTJ face is used to contain the gasket ring which are specially for high pressure application.

NPS	NPS	NPS	Flanges	Flanges	Flanges	Flanges	Weld Neck	Weld Neck	Weld Neck	Weld Neck	Raised face (RF)	Raised face (RF)	Screws	Screws	Screws	(7,85 Kg/dm3)
Rated Daimeter	d1	d1	D	b	k	h1	d3	s	r	h2	d4	f	Holes	Thread	d2	Kilogram
Diameter	ISO Series	DIN Series	D	b	k	h1	d3	s	r	h2	d4	f	Holes	Thread	d2	Kilogram
15	-	20	95	14	65	35	30	2	4	6	45	2	4	M 12	14	0,648
15	21,3	-	95	14	65	35	32	2	4	6	45	2	4	M 12	14	0,648
20	-	25	105	16	75	38	38	2,3	4	6	58	2	4	M 12	14	0,952
20	26,9	-	105	16	75	38	40	2,3	4	6	58	2	4	M 12	14	0,952
25	-	30	115	16	85	38	42	2,6	4	6	68	2	4	M 12	14	1,14
25	33,7	-	115	16	85	38	45	2,6	4	6	68	2	4	M 12	14	1,14
32	-	38	140	16	100	40	52	2,6	6	6	78	2	4	M 16	18	1,69
32	42,4	-	140	16	100	40	56	2,6	6	6	78	2	4	M 16	18	1,69
40	-	44,5	150	16	110	42	60	2,6	6	7	88	3	4	M 16	18	1,86
40	48,3	-	150	16	110	42	64	2,6	6	7	88	3	4	M 16	18	1,86
50	-	57	165	18	125	45	72	2,9	6	8	102	3	4	M 16	18	2,53
50	60,3	-	165	18	125	45	75	2,9	6	8	102	3	4	M 16	18	2,53
65	76,1	-	185	18	145	45	90	2,9	6	10	122	3	4	M 16	18	3,06
80	88,9	-	200	20	160	50	105	3,2	8	10	138	3	8	M 16	18	3,7
100	-	108	220	20	180	52	125	3,6	8	12	158	3	8	M 16	18	4,62
100	114,3	-	220	20	180	52	131	3,6	8	12	158	3	8	M 16	18	4,62
125	-	133	250	22	210	55	150	4	8	12	188	3	8	M 16	18	6,3
125	139,7	-	250	22	210	55	156	4	8	12	188	3	8	M 16	18	6,3
150	-	159	285	22	240	55	175	4,5	10	12	212	3	8	M 20	22	7,75
150	168,3	-	285	22	240	55	184	4,5	10	12	212	3	8	M 20	22	7,75
200	219,1	-	340	24	295	62	235	5,9	10	16	268	3	8	M 20	22	11,3
250	-	267	395	26	350	68	285	6,3	12	16	320	3	12	M 20	22	14,7
250	273	-	395	26	350	68	292	6,3	12	16	320	3	12	M 20	22	14,7
300	323,9	-	445	26	400	68	344	7,1	12	16	370	4	12	M 20	22	17,4
350	355,6	-	505	26	460	68	385	7,1	12	16	430	4	16	M 20	22	23,6
350	-	368	505	26	460	68	385	7,1	12	16	430	4	16	M 20	22	21,6
400	406,4	-	565	26	515	72	440	7,1	12	16	482	4	16	M 24	26	28,6
400	-	419	565	26	515	72	440	7,1	12	16	482	4	16	M 24	26	26,2
(450)	457	-	615	28	565	72	488	7,1	12	16	532	4	20	M 24	26	31,5
500	508	-	670	28	620	75	542	7,1	12	16	585	4	20	M 24	26	38,1
600	610	-	780	28	725	80	642	7,1	12	18	685	5	20	M 27	30	44,6
700	711	-	895	30	840	80	745	8	12	18	800	5	24	M 27	30	62,4
800	813	-	1015	32	950	90	850	8	12	18	905	5	24	M 30	33	84,1
900	914	-	1115	34	1050	95	950	10	12	20	1005	5	28	M 30	33	98,5
1000	1016	-	1230	34	1160	95	1052	10	16	20	1110	5	28	M 33	36	115
