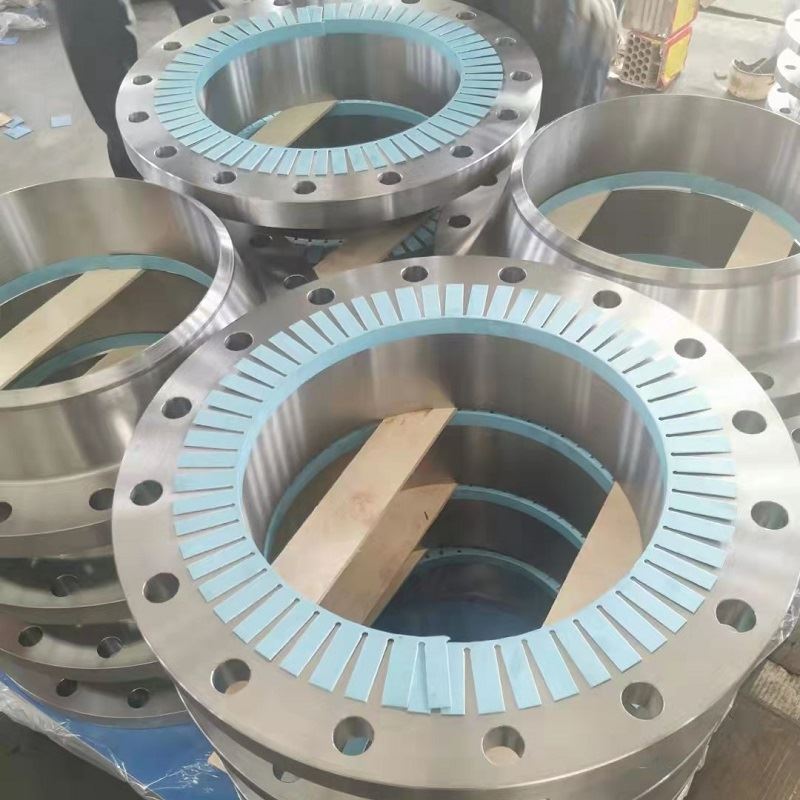

Jis 10k Welding Neck Flanges

$25.00 | 1 kg(Min.Order)

Weld Neck Flanges are the most popular type of flanges for high-pressure applications. They are designed to weld directly to pipes, which provides excellent form connection.

Send Inquiry

Add To Cart

Features

Introduction:

Welcome to our Jis 10k Welding Neck Flanges, the ultimate solution to all your piping and plumbing needs. We, as a prominent manufacturer located in China, are proud to introduce our world-class product that aims to revolutionize the way you conduct your plumbing and piping projects. We cater to clients across the globe with our state-of-the-art products that demonstrate exceptional quality, durability, and affordability. Our Jis 10k Welding Neck Flanges are one such example of how we endeavor to provide the best to our esteemed customers.

Product Description:

Our Jis 10k Welding Neck Flanges are a type of pipe flange that is commonly used in the petrochemical, shipbuilding, and construction industries. These flanges are designed to connect pipes, valves or pumps in a piping system. The Welding Neck Flanges are known for their higher pressure ratings of up to 20 bar and are a preferred choice for high-pressure applications as well. The product is JIS compatible and made of premium quality materials such as carbon, stainless steel, and alloy steel that ensure durability and longevity.

Salient Features:

• High-quality material - Our Jis 10k Welding Neck Flanges are made of premium quality materials that are sourced from the most reliable and reputed vendors. This ensures that the product possesses exceptional resistance to corrosion, wear, and tear, and pressure.

• Easy to install - The welding neck flange is easy to install and can be easily welded to the piping system. Our Jis 10k Welding Neck Flanges are engineered to provide a tight seal without any leakages, ensuring hassle-free installation and maintenance.

• Diverse Applications - Our Jis 10k Welding Neck Flanges are ideally suited for a wide range of applications, including heating and cooling systems, water supply networks, shipbuilding, petroleum, and petrochemical industries, among others.

• Cost-Effective - The Jis 10k Welding Neck Flanges are competitively priced and offer cost savings over other pipe flanges in the market. The use of premium quality materials ensures that the product delivers high performance, while our cost-effective pricing policies ensure that you get the best value for your money.

Advantages of our Jis 10k Welding Neck Flanges:

• Durability and Reliability - The Jis 10k Welding Neck Flanges are made of high-quality materials and are engineered to offer exceptional durability and reliability. This ensures that the product requires minimal maintenance, ensuring maximum uptime and reduced downtimes.

• Wide Range of Sizes - We offer Jis 10k Welding Neck Flanges in various sizes and standards to ensure that our clients' diverse needs are met.

• Strong Resistance to Corrosion and Wear - Our Jis 10k Welding Neck Flanges are designed to offer exceptional resistance to corrosion, wear, and tear, thereby increasing their lifespan.

• Better Performance and Enhanced Safety - The Jis 10k Welding Neck Flanges are engineered to provide better performance and ensure enhanced safety in high-pressure applications.

Conclusion:

We, as a company, strive to provide the best to our clients, and our Jis 10k Welding Neck Flanges are a testament to this philosophy. Our products are designed to provide exceptional quality, reliability, and durability, and we take pride in being a brand that is trusted by clients across the globe. So, if you are looking for a product that ensures maximum uptime, minimal maintenance, and exceptional performance, look no further than our Jis 10k Welding Neck Flanges!

1. Introduction: Weld Neck Flanges are the most popular type of flanges for high-pressure applications. They are designed to weld directly to pipes, which provides excellent form connection.

2. Description: JIS 10K WELDING NECK FLANGES are particularly useful to join a chain of pipes, tubes or flanges together. Some flanges need to undergo high pressure. In industries like, the oil and gas sector, JIS 10K WELDING NECK FLANGES are required to bear high amount of physical force and high pressure. Therefore manufacturers often perform certain tests before they are offered for sale to a specific sector.

JIS10K NOMINAL PIPE SIZE MM	JIS10K NOMINAL PIPE SIZE INCH	JIS10K OUTSIDE DIAMETER OF FLANGE C	JIS10K THIKNESS OF FLANGE T	JIS10K THIKNESS OF BLIND T1	LTB BOSSED LENGTH SOH.SW LI L	LTB WELD NECK LENGTH L1	DRILLING DATA PITCH CIRCLE DIAMETER PCD	DRILLING DATA NUMBER OF BOLT HOLES #	DRILLING DATA BOLT HOLE DIAMETER H
10	3/8	90	12	12	16	29	65	4	15
15	1/2	95	12	12	16	31	70	4	15
20	3/4	100	14	14	20	32	75	4	15
25	1	125	14	14	20	36	90	4	19
32	1 1/4	135	16	16	22	38	100	4	19
40	2 1/2	140	16	16	24	38	105	4	19
50	2	155	16	16	24	40	120	4	19
65	2 1/2	175	18	18	27	44	140	4	19
80	3	185	18	18	30	45	150	8	19
90	3 1/2	195	18	18	N/A	45	160	8	19
100	4	210	18	18	36	45	175	8	19
125	5	250	20	20	40	47	210	8	23
150	6	280	22	22	40	53	240	8	23
175	7	305	22	22	N/A	55	265	12	23
200	8	330	22	22	N/A	58	290	12	23
225	9	350	22	22	N/A	58	310	12	23
250	10	400	24	24	36	65	355	12	25
300	12	445	24	24	38	68	400	16	25
350	14	490	26	26	42	79	445	16	25
400	16	560	28	28	44	85	510	16	27
450	18	620	30	30	48	90	565	20	27
500	20	675	30	30	48	99	620	20	27
550	22	745	32	34	52	111	680	20	33
600	24	795	32	36	52	112	730	24	33
650	26	845	34	38	56	116	780	24	33
700	28	905	34	40	58	132	840	24	33
750	30	970	36	44	62	139	900	24	33
800	32	1020	36	46	64	139	950	28	33
850	34	1070	36	48	66	139	1000	28	33
900	36	1120	38	50	70	140	1050	28	33
1000	40	1235	40	56	74	151	1160	28	39
