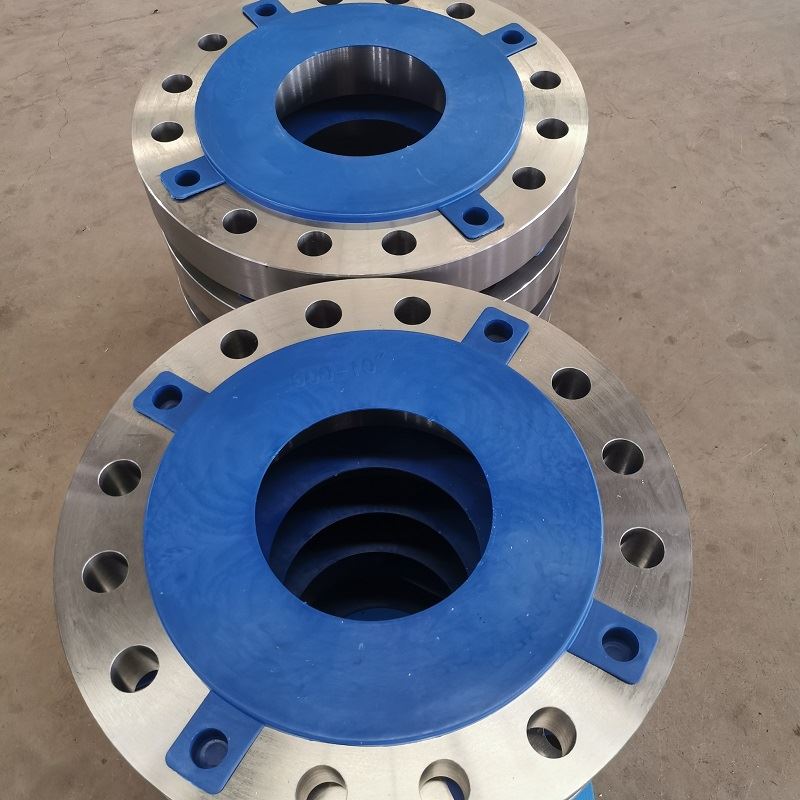

Jis 16k Welding Neck Flanges

$25.00 | 1 kg(Min.Order)

A weld neck flange is a type of steel flange designed to transfer stresses to the pipe to reduce high stress concentrations at the base of the flange.

Send Inquiry

Add To Cart

Features

As a manufacturer located in China, we specialize in producing high-quality products that can be used in a variety of industries. One of our most popular products is our Jis 16k Welding Neck Flanges.

Our Jis 16k Welding Neck Flanges are used in a variety of industries, including oil and gas, chemical, and power generation. They are a crucial component in piping systems, providing a secure and permanent connection between pipes or hoses. These flanges are designed to withstand pressure, high temperatures, and corrosive environments, ensuring that they will perform reliably and effectively.

Our Jis 16k Welding Neck Flanges are manufactured using the highest-quality materials and stringent quality control standards. We use only the finest materials, such as carbon steel, stainless steel, and alloy steel, to ensure that our flanges will stand up to even the most challenging conditions. Our flanges are available in a range of sizes and materials to meet the specific requirements of any application.

One of the key features of our Jis 16k Welding Neck Flanges is their easy installation. These flanges are designed to be welded directly to the pipe, which ensures a secure and permanent connection. Installing these flanges is easy, and they can be used in a variety of configurations depending on the needs of your specific application.

In addition to their superior quality and ease of installation, our Jis 16k Welding Neck Flanges also offer excellent durability and longevity. They are resistant to corrosion and wear and tear, making them a reliable component of any piping system. Our flanges are designed to last for years, providing a hassle-free solution to your piping needs.

One of the benefits of purchasing our Jis 16k Welding Neck Flanges is their competitive pricing. As a manufacturer located in China, we are able to offer these high-quality flanges at a lower cost than our competitors. We work closely with our customers to provide tailored solutions that meet their specific needs without breaking the bank.

We take pride in our commitment to customer satisfaction. Our team of experts is available to provide technical support and assistance with any questions you may have regarding our products. We strive to provide excellent customer service, from the initial inquiry to the final delivery of your order.

In conclusion, our Jis 16k Welding Neck Flanges are a reliable and cost-effective solution for anyone in need of high-quality piping components. Our commitment to excellence, coupled with our competitive pricing, makes us the ideal partner for anyone in need of superior piping solutions. We look forward to working with you and helping you achieve your project goals with our high-quality flanges.

1. Introduction: A weld neck flange is a type of steel flange designed to transfer stresses to the pipe to reduce high stress concentrations at the base of the flange.

2. Description: Weld Neck Flanges are the most popular type of flanges for high-pressure applications. They are designed to weld directly to pipes, which provides excellent form connection. They are easily attached to pipes by welding to the neck of the flange, allowing even pressure distribution. Widely used in the piping industry, these high-quality weld neck flanges are the number one choice for many industry professionals. We offer a large selection and various sizes and dimensions that are suited to fit any applications.

JIS16K NOMINAL PIPE SIZE MM	JIS16K NOMINAL PIPE SIZE INCH	JIS16K OUTSIDE DIAMETER OF FLANGE C	JIS16K THIKNESS OF FLANGE T	JIS16K THIKNESS OF BLIND T1	LTB BOSSED LENGTH SOH.SW LI L	LTB WELD NECK LENGTH L1	DRILLING DATA PITCH CIRCLE DIAMETER PCD	DRILLING DATA NUMBER OF BOLT HOLES #	DRILLING DATA BOLT HOLE DIAMETER H
10	3/8	90	12	12	16	31	65	4	15
15	1/2	95	12	12	16	32	70	4	15
20	3/4	100	14	14	20	34	75	4	15
25	1	125	14	14	20	36	90	4	19
32	1 1/4	135	16	16	22	39	100	4	19
40	2 1/2	140	16	16	24	39	105	4	19
50	2	155	16	16	24	40	120	8	19
65	2 1/2	175	18	18	26	46	140	8	19
80	3	200	20	20	28	49	160	8	23
90	3 1/2	210	20	20	30	50	170	8	23
100	4	225	22	22	34	56	185	8	23
125	5	270	22	22	34	60	225	8	25
150	6	305	24	24	38	79	260	12	25
200	8	350	26	26	40	73	305	12	25
250	10	430	28	28	44	81	380	12	27
300	12	480	30	30	48	88	430	16	27
350	14	540	34	34	52	104	480	16	33
400	16	605	38	38	60	115	540	16	33
450	18	675	40	40	64	126	605	20	33
500	20	730	42	42	68	128	660	20	33
550	22	795	44	44	70	135	720	20	39
600	24	845	46	46	74	141	770	24	39
650	26	895	48	N/A	77	N/A	820	24	39
700	28	960	50	N/A	80	N/A	875	24	42
750	30	1020	52	N/A	83	N/A	935	24	42
800	32	1085	54	N/A	86	N/A	990	24	48
850	34	1135	56	N/A	89	N/A	1040	24	48
900	36	1185	58	N/A	93	N/A	1090	28	48
1000	40	1320	62	N/A	99	N/A	1210	28	56
